TB-6145

AI Endpoint Industrial-Grade Fanless PC

Available – Contact Us for Quick Quote

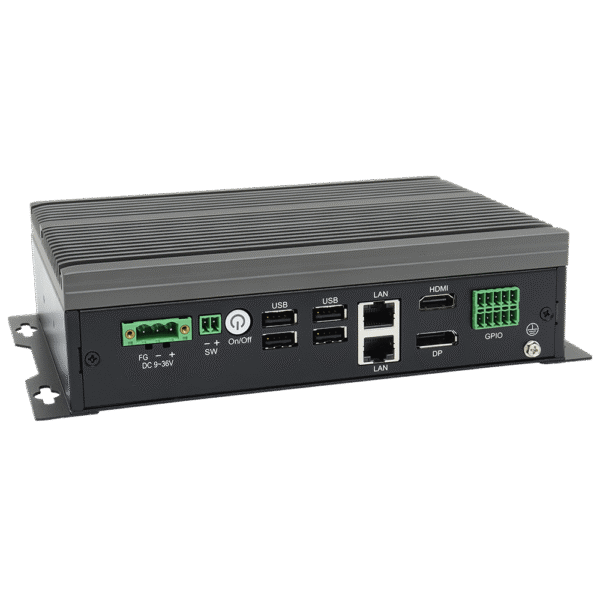

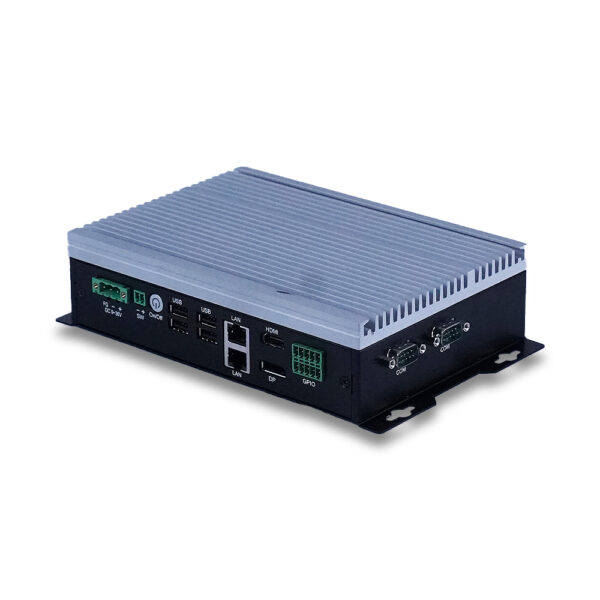

Teguar TB-6145 Edge AI Endpoint Computer Hero Angle

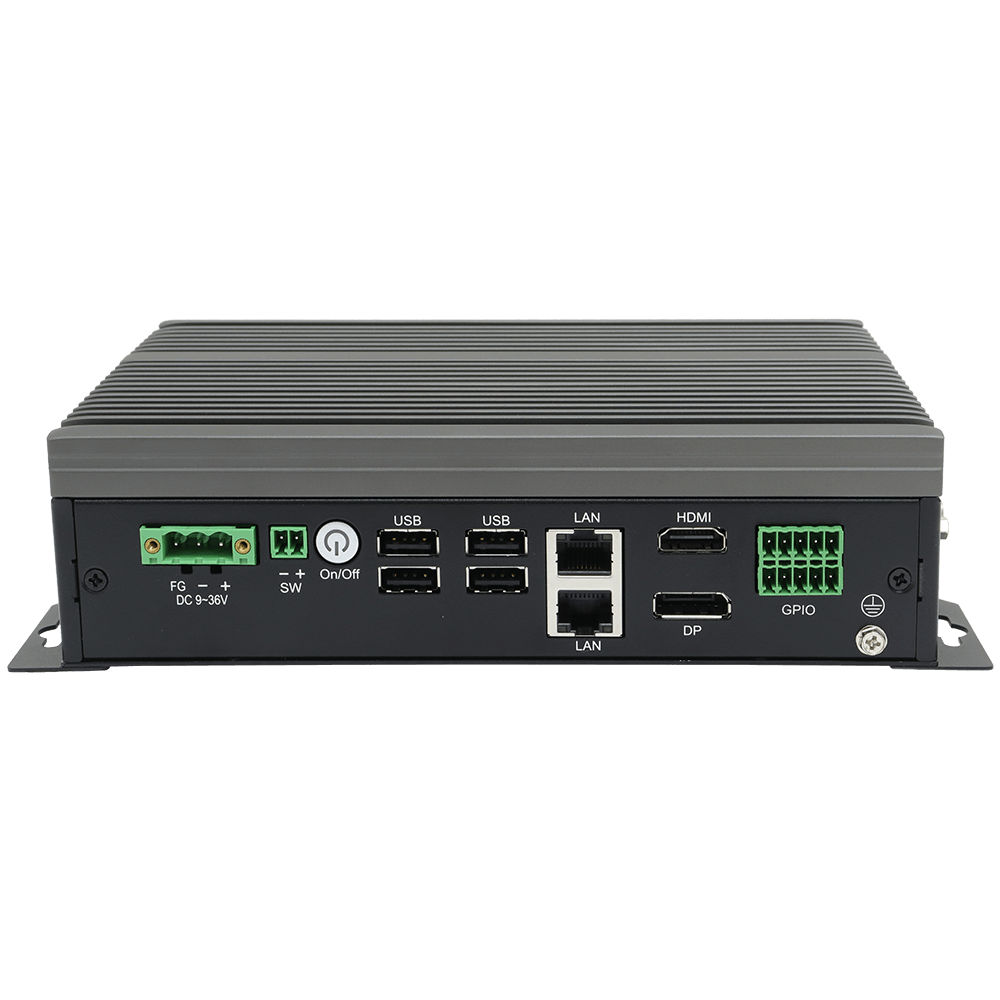

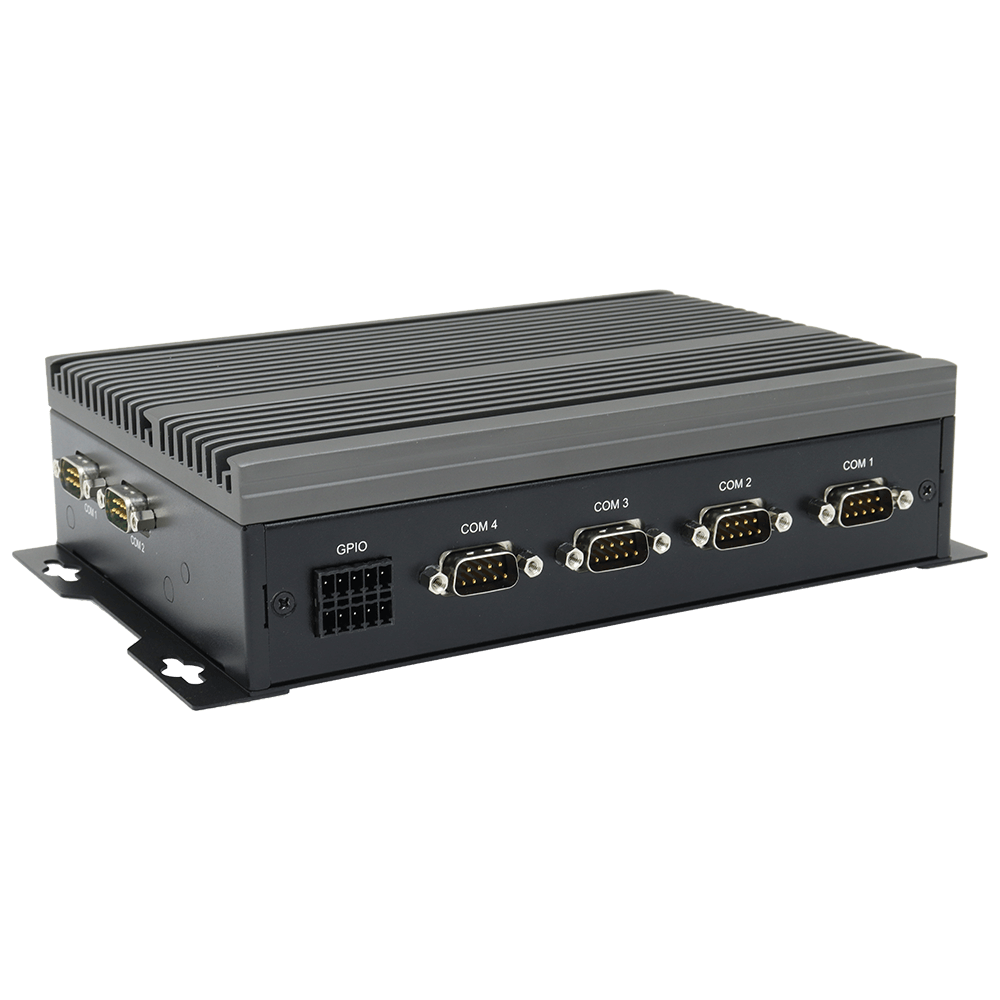

Teguar TB-6145 Edge AI Endpoint Computer IO Angle

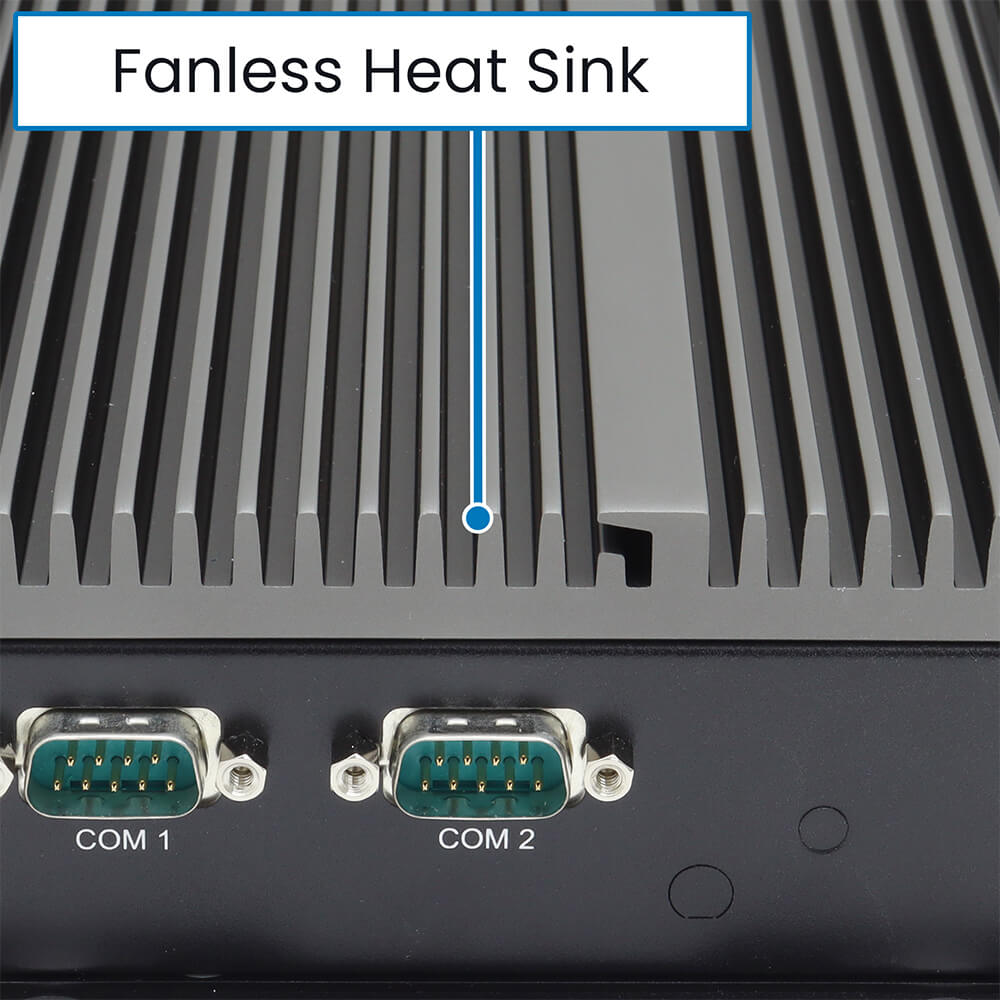

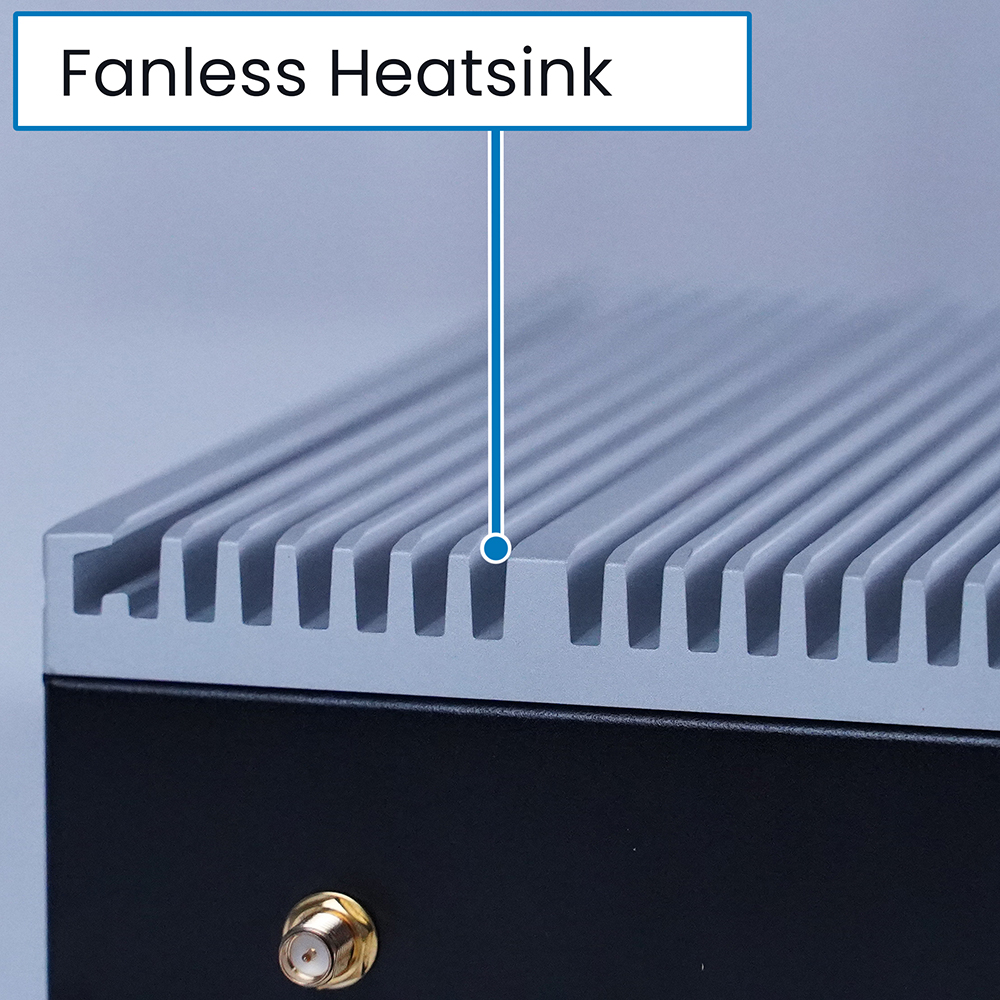

TB-6145 with a label indicating the Fanless Heatsink

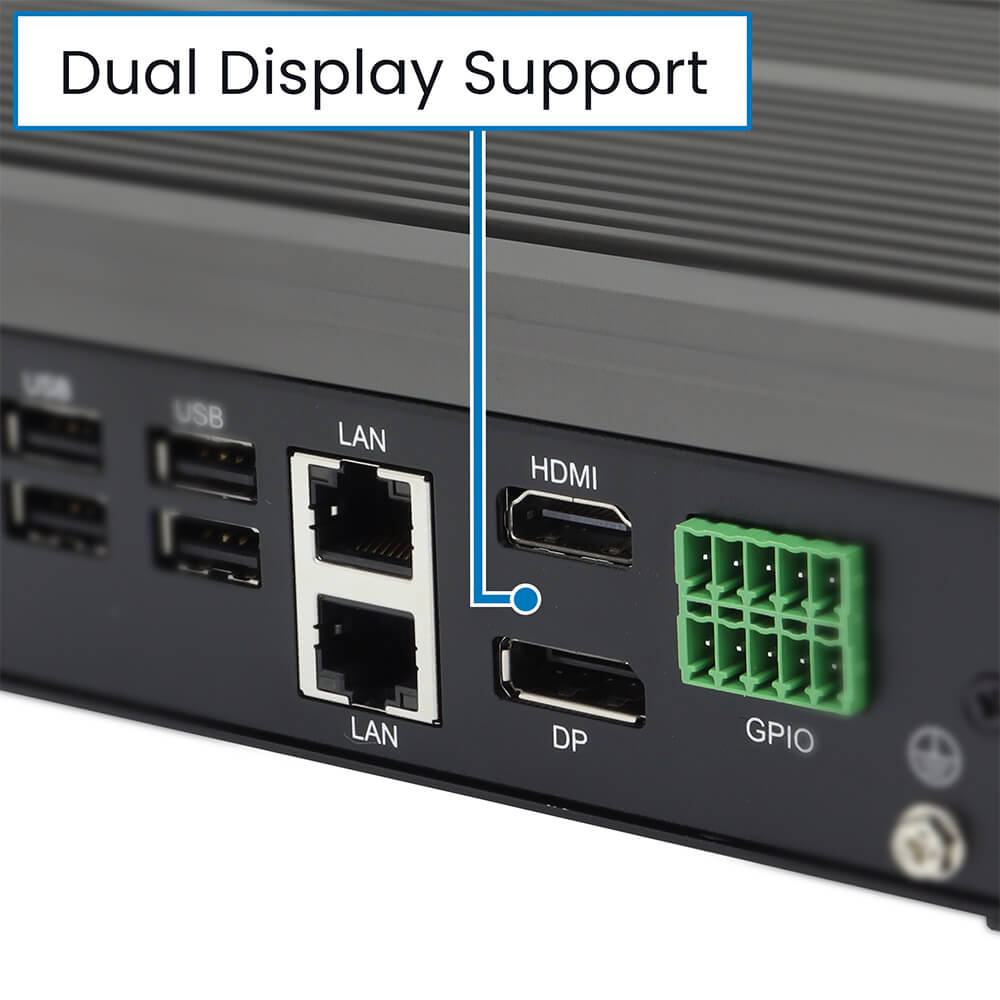

TB-6145 with a label indicating the dual display ports

Beschreibung

The TB-6145 is ready to be the centerpiece of your industrial and edge AI systems, with all the features to connect, control, and display. Enjoy fast processing speeds with Intel®’s 12th Generation Alder Lake processor, with your choice of Alder Lake N97 or Core i3 to suit your specific needs. The PC’s speed and capacity are further enhanced with the latest DDR5 synchronous dynamic RAM.

This embedded PC has made the most of its surface area to include every IO you’ll need in an endpoint, including two display ports, 8-channel GPIO, a mini PCIe slot, and more. With all of these features in a sturdy fanless enclosure, you can rely on this rugged edge computer to be the cornerstone of any industrial application.

Key Highlights

Intel® Alder Lake N97 processor, or upgrade to Core i3 (N305 For Projects)
2.5Gb Ethernet in two LAN ports
Mini PCIe for Wi-Fi and Key B for Cellular
DDR5 Memory

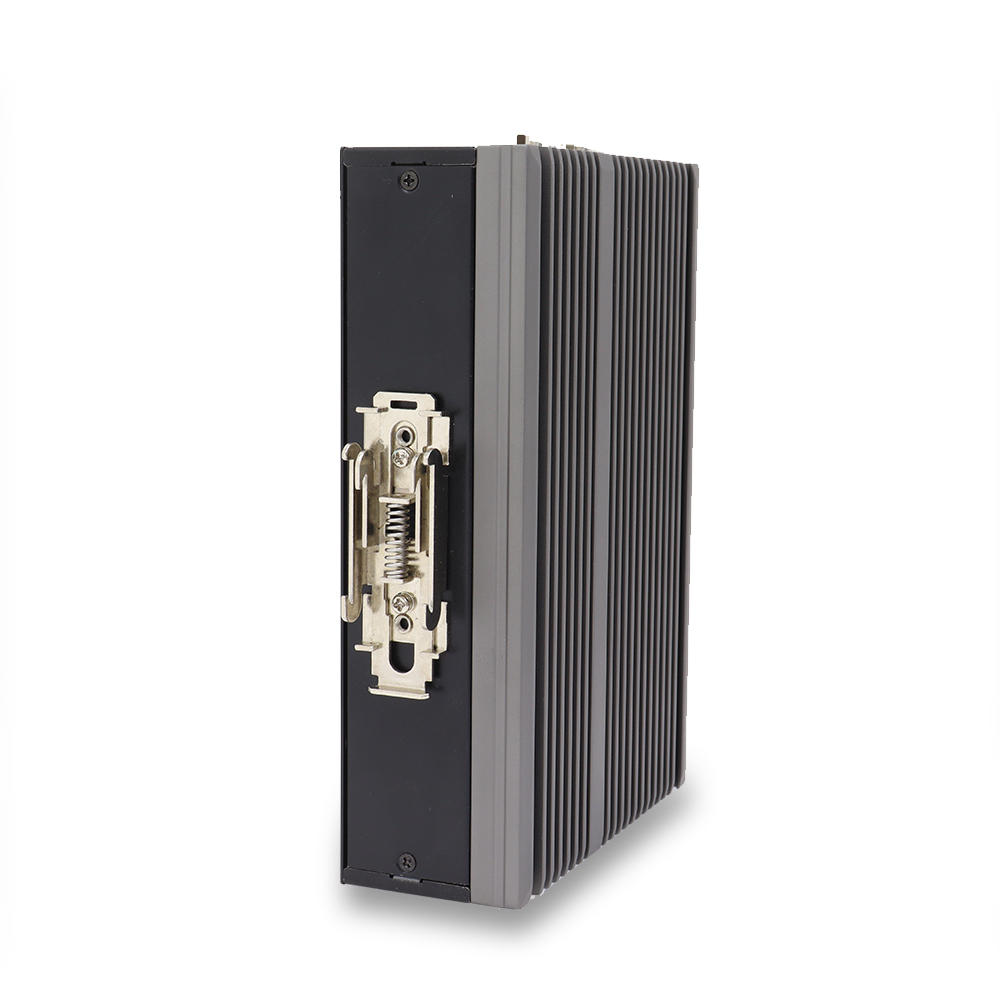

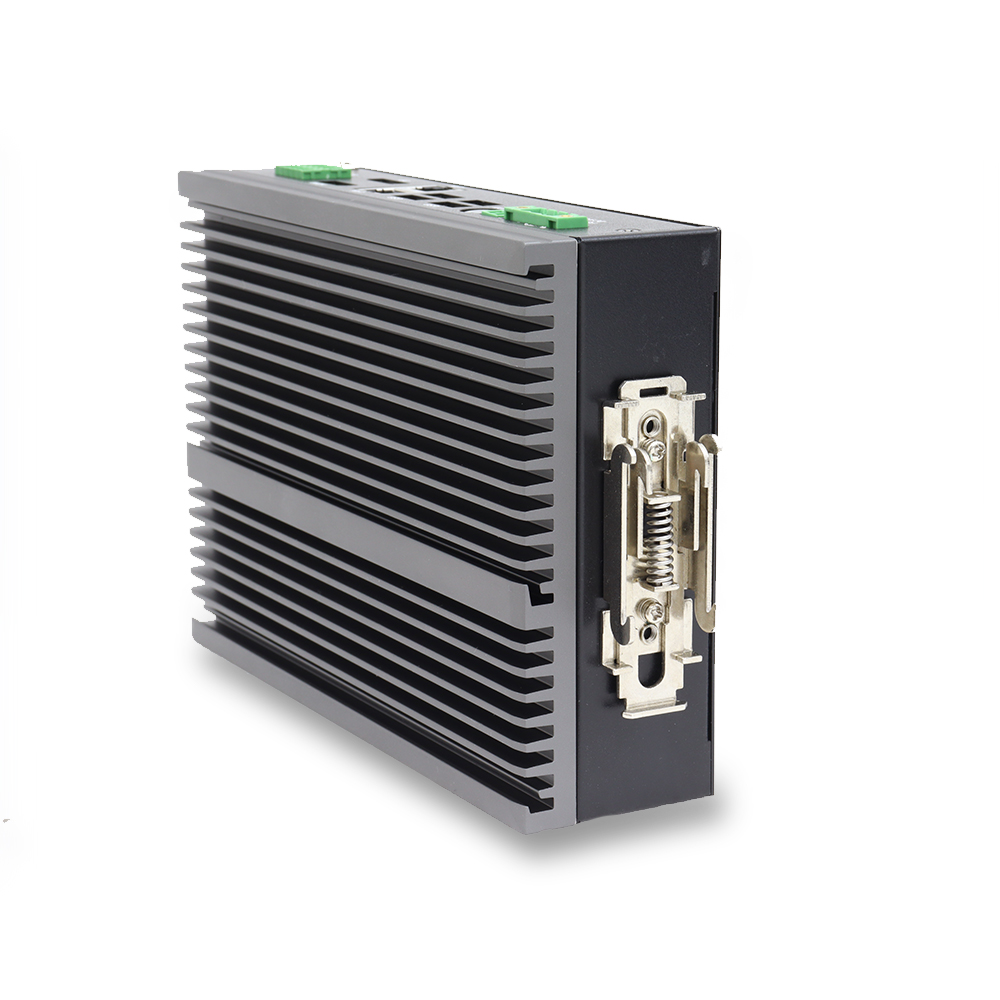

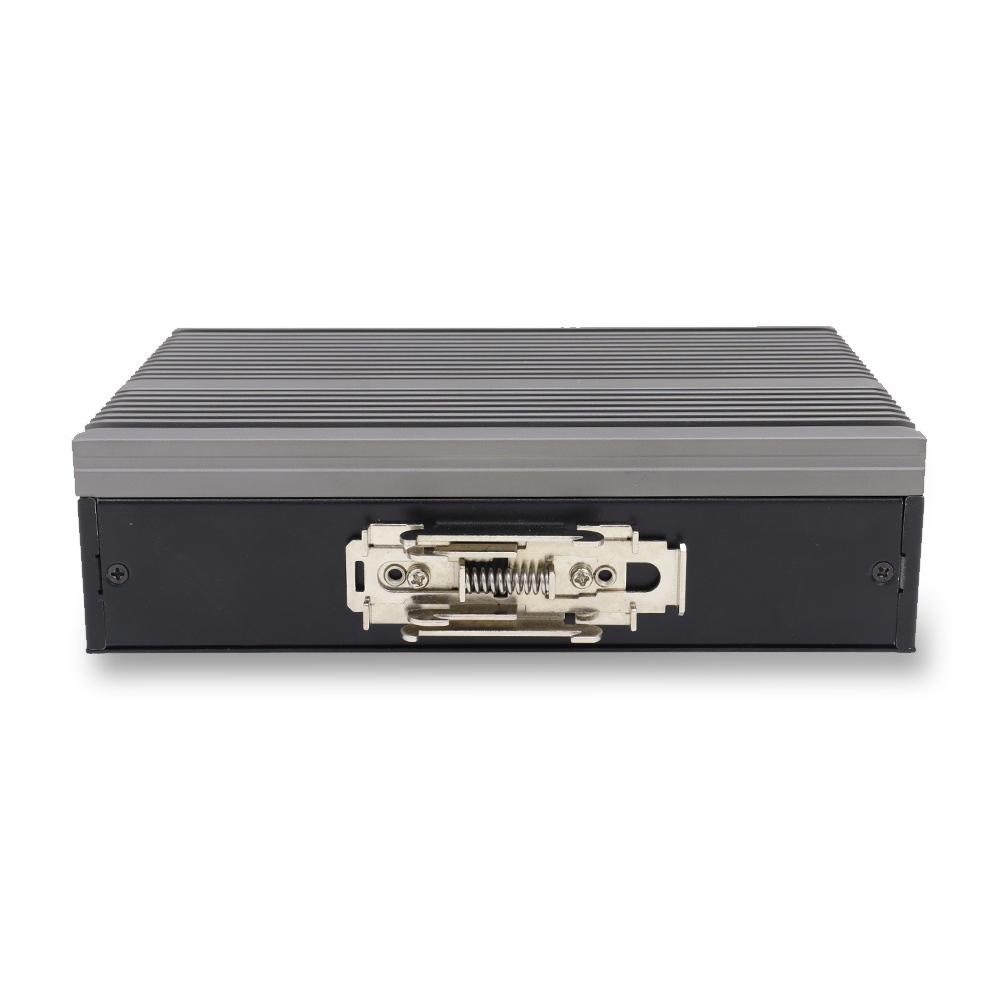

DIN Rail or Wall Mountable
Extended desktop capability with dual display ports

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron or Core I series 12th Generation Alder Lake N
Processor Model	Celeron N97, Core i3-N305, by Project
Processor Speed	Up to 3.6 GHz, Up to 3.8 GHz, 1.8 GHz, 2.0 GHz
Memory Type	1x DDR5 SO-DIMM
Memory Support	8GB, 16GB
Storage Type	1x M.2 B+M Key SATA3 2242 Slot
Storage Support	M.2: 128GB-1TB

External I/O Ports

USB	4x USB 2.0

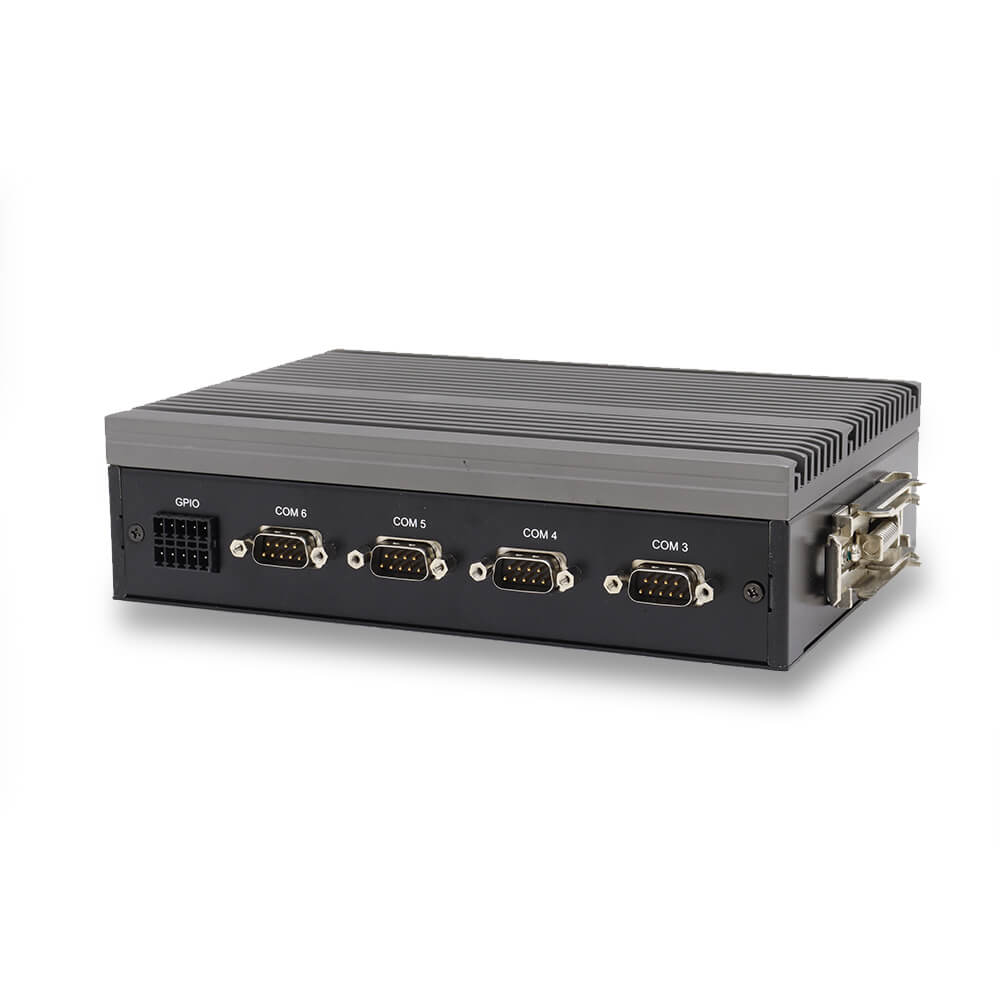

Serial / Com	Add 4x COM( Adds 2nd GPIO), Optional, 2x COM

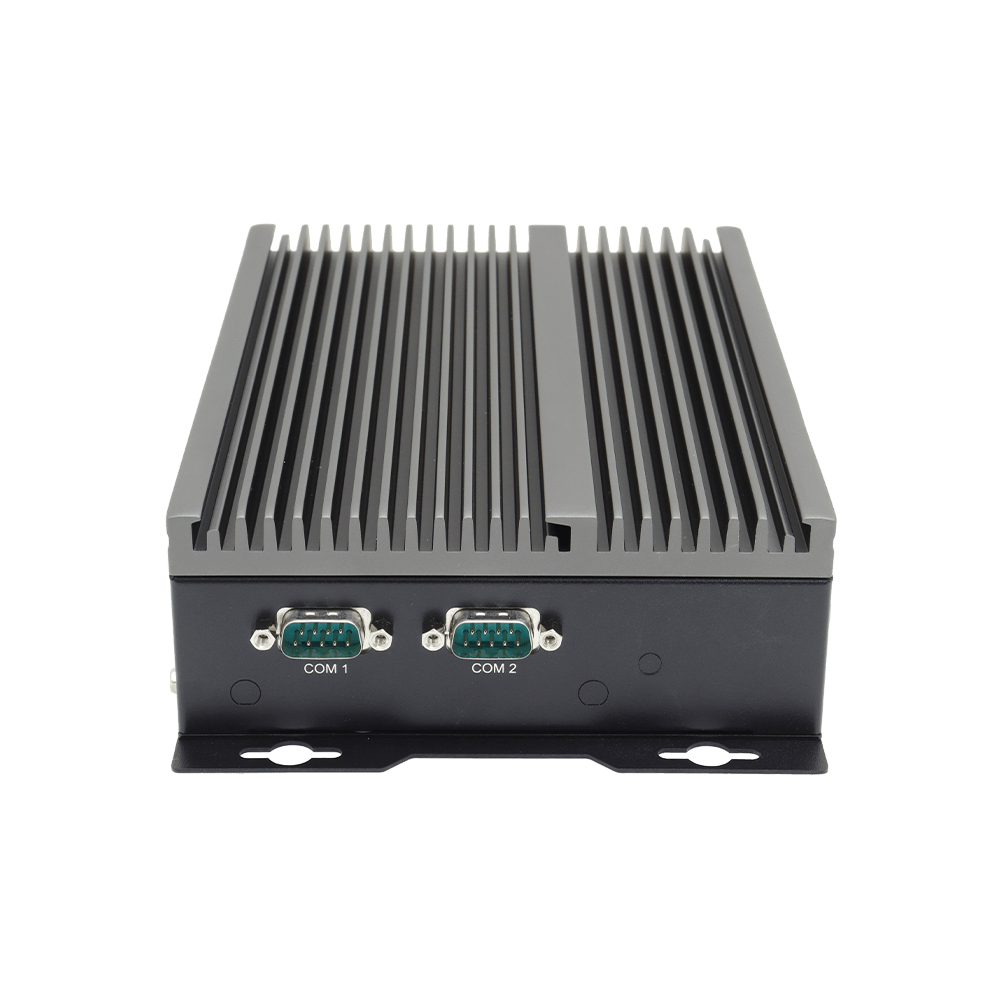

Serial Protocol Detail	2x COM (RS-232/422/485 configured in BIOS)
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	1x DisplayPort, 1x HDMI
Audio Ports	1x 3.5mm Audio Line-In, 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port	DC-in Jack (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	65W
Standard Power Adapter	DC 19V/65W adapter, US AC power cord

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2

1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option)

Thermal & Environmental

Operating Temperature	-10°C - 60°C (14°F – 140°F (With WT devices))
Humidity Range	95% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Color	Black
Led Indicator Light	Power
Control Buttons	Power Switch

Weight / Dimensions

Weight	4.4
Dimensions	200x55x150

Warranty

Up to 5 Years

Edge computing: This box PC is designed for edge computing with its top-tier 2.5Gb Ethernet connectivity along with constant network sustainability, made possible by its dual LAN support.

IoT computer: With its durable design, high-end processor, and network security from its dual LAN ports, utilize the TB-6145 as an IoT computer.

Systems controller: The industrial edge AI endpoint will serve as your system controller with strong performance that lasts thanks to its numerous IOs and Teguar’s dedication to product longevity.

See the data sheet Warranty Download Drivers

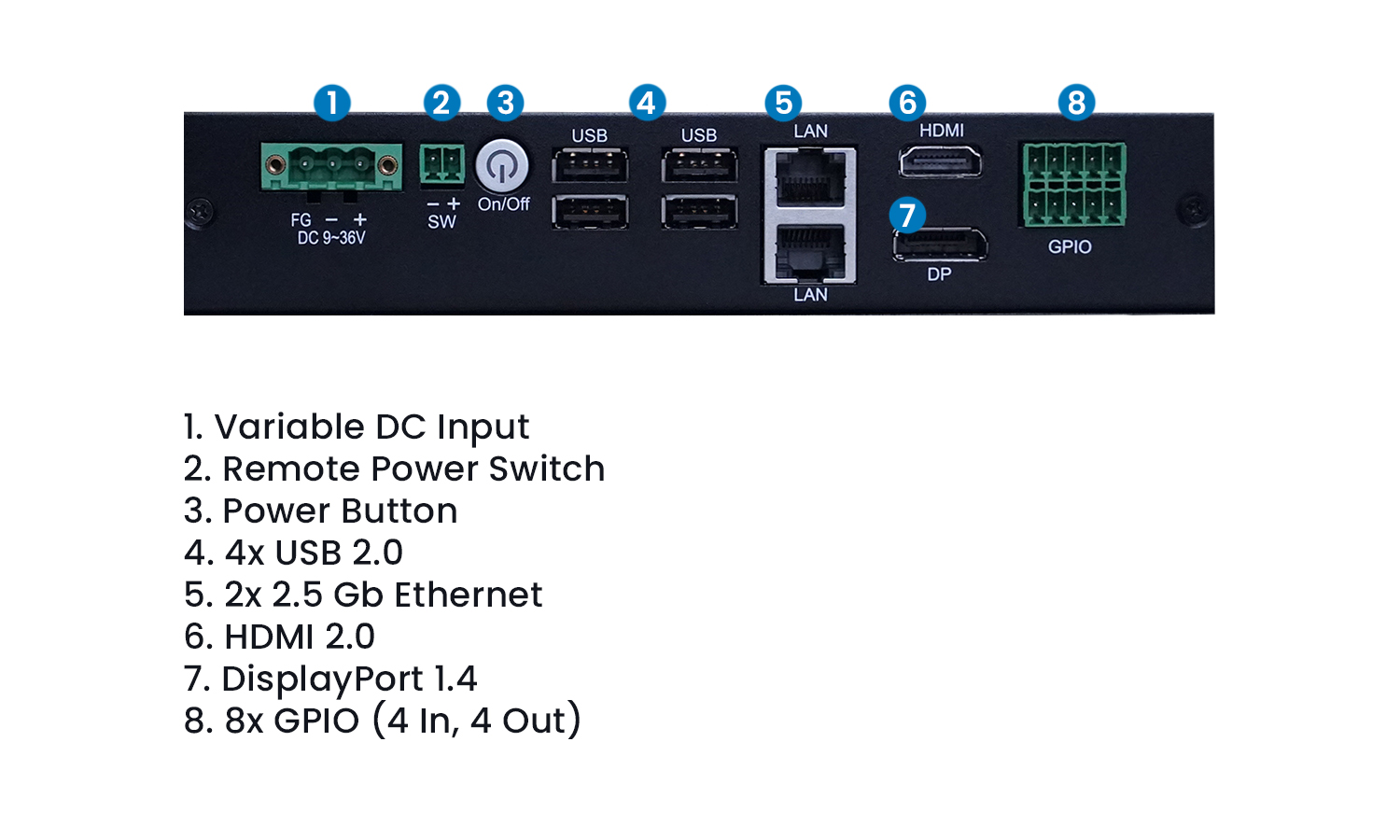

I/O Diagram Images

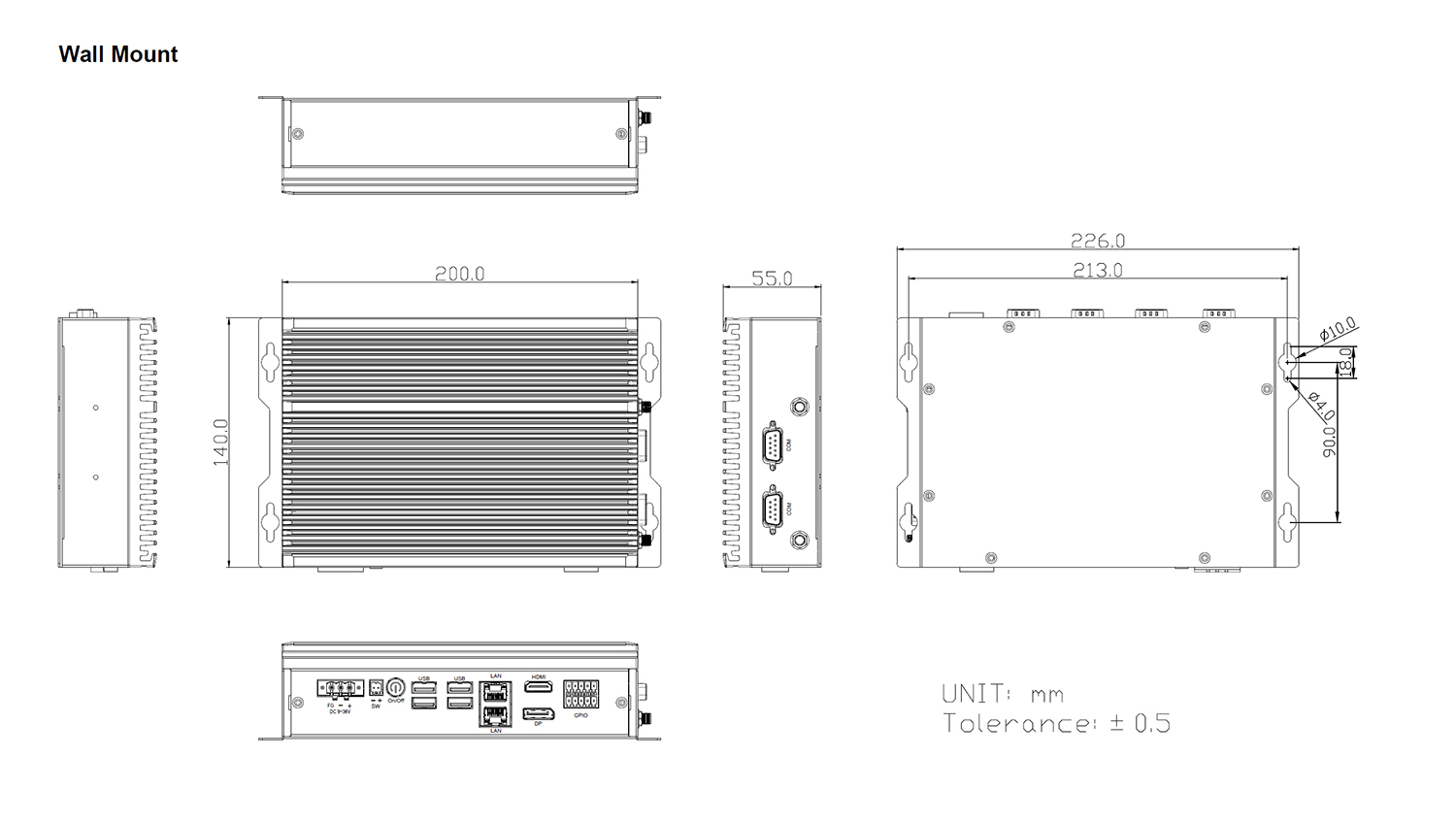

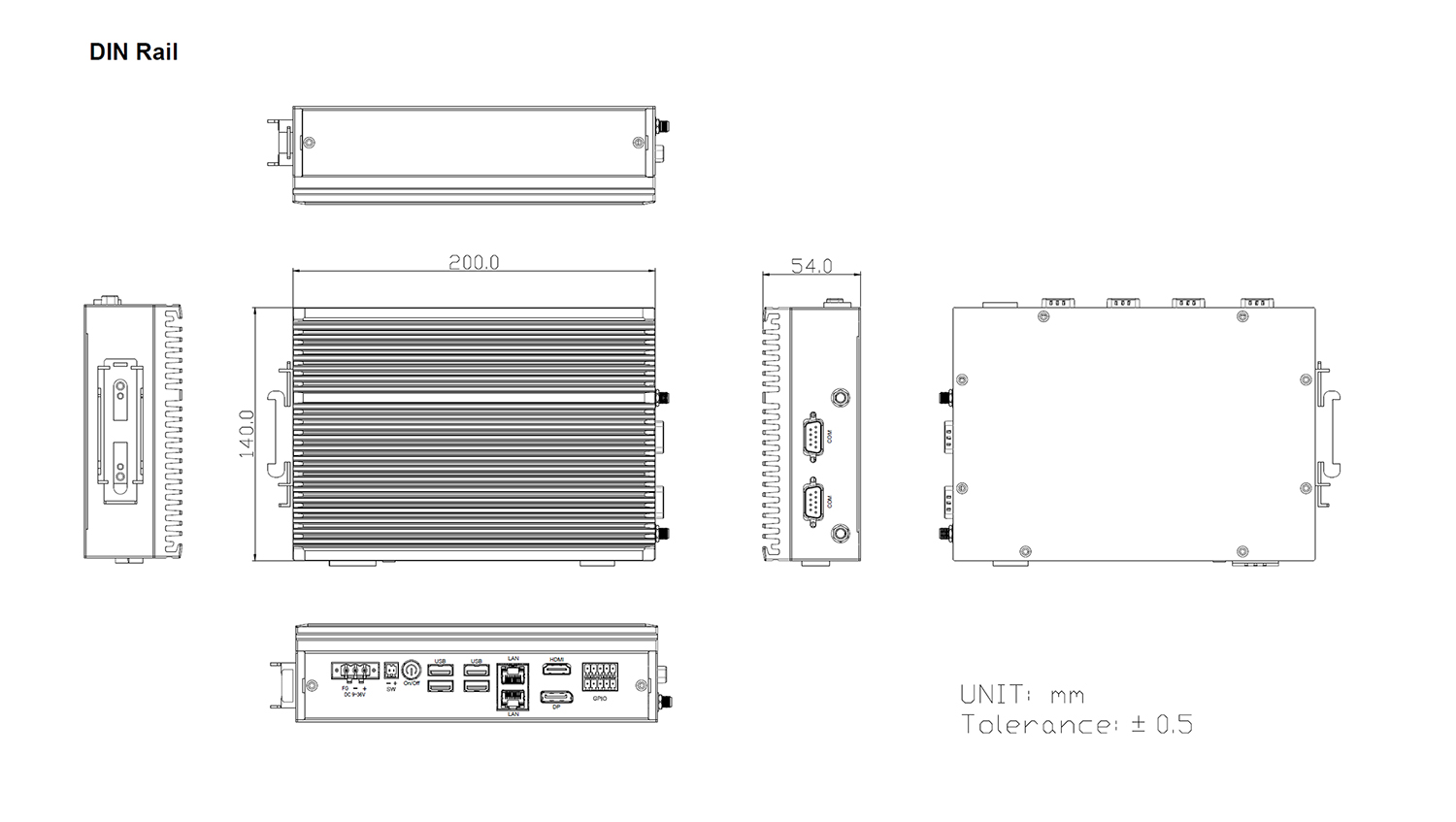

Tech Diagram Images
