TB-4845-POE

Industrial Mini PC POE

Available – Contact Us for Quick Quote

Beschreibung

The TB-4845-POE is a versatile computing solution designed to excel in various industrial applications. Powered by an Intel Celeron J6413 CPU and running on Windows 11, this device delivers reliable performance and supports a wide range of software capabilities. With its POE (Power over Ethernet) feature, the TB-4845-POE becomes an ideal choice for applications such as capturing images on a manufacturing line or deploying cameras in industrial settings. Additionally, its multiple I/Os provide seamless connectivity to peripheral devices, ensuring enhanced flexibility and compatibility. The TB-4845-POE combines power, efficiency, and connectivity, making it an exceptional solution for industrial computing needs.

Key Highlights

Intel Celeron J6413 Processor
Windows 11 Capabilities
Fanless Cooling System
Power over Ethernet, 2x LAN with 30W POE output
Multiple Inputs and Outputs including 5x USB, 1x LAN and 2x COM

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6413
Processor Speed	Up to 3.0 GHz, 1.8 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	32GB
Storage Type	1x M.2 SATA3 2242 Slot
Storage Support	M.2: 256GB-1TB

External I/O Ports

USB	1x USB 2.0 (Internal Type A on Motherboard), 2x USB 2.0, 2x USB 3.1
Serial / Com	2x COM
Ethernet / LAN	3x RJ45 GbE LAN, 2x with 30W POE out
Video Outputs	1x HDMI, 1x VGA
Other Ports	1x GPIO 8 bit
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	24V required if POE out is utilized
Max Power Consumption	80W
Standard Power Adapter	24Vdc, US AC power cord, 120W

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security Hardware

fTPM 2.0

Expansion Slots

Internal M.2

1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option)

Thermal & Environmental

Operating Temperature	-20°C - 70°C (-4°F – 158°F)
Storage Temperature	-40°C - 85°C (-40°F – 185°F)
Cooling Solution	Passive – Fanless
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
Color	Black
Led Indicator Light	HDD Access, Power
Mounting Options	DIN Rail Mount

Weight / Dimensions

Weight	1.9
Dimensions	180x130x55

Certification

Certifications

CE, EN 55032/55035 and CISPR 32/35, FCC, IEC 61000-3-2 (EMC), IEC 61000-3-3 (EMC), IEC 61000-4 (ESD), UKCA

Industrial Camera Systems for Manufacturing: The TB-4845-POE, equipped with an Intel Celeron J6413 CPU and supporting Windows 11, stands out as an excellent solution for industrial camera systems. Its Power over Ethernet (POE) feature simplifies deployment, making it ideal for capturing images on manufacturing lines or integrating cameras into various industrial settings. The multiple I/Os enhance connectivity, providing flexibility for camera installations.

Remote Monitoring Stations: With its reliable performance and POE capability, the TB-4845-POE is well-suited for applications requiring remote monitoring in industrial environments. Whether overseeing equipment status, surveillance cameras, or environmental conditions, this computing solution ensures seamless connectivity to peripheral devices, contributing to efficient and remote monitoring stations.

Industrial IoT Gateway: The TB-4845-POE serves as a powerful Industrial Internet of Things (IoT) gateway. Its combination of power, efficiency, and connectivity, along with the POE feature, makes it an exceptional choice for collecting and transmitting data from various sensors and devices in industrial settings. This device enhances the capabilities of IoT applications, supporting tasks such as predictive maintenance and real-time monitoring.

See the data sheet Warranty Download Drivers

I/O Diagram Images

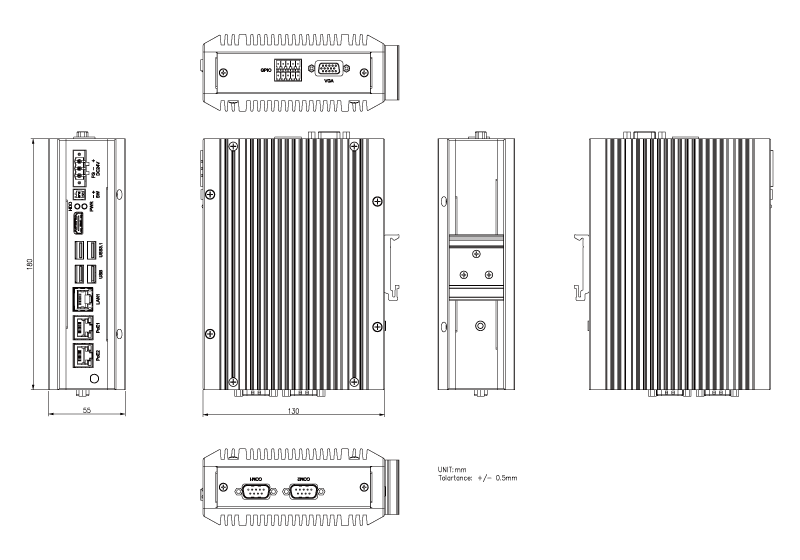

Tech Diagram Images

TB-4845-POE

Industrie Mini PC POE

Available – Contact Us for Quick Quote

Beschreibung

Der TB-4845-POE ist eine vielseitige Computerlösung, die sich für verschiedene industrielle Anwendungen eignet. Das von einer Intel Celeron J6413 CPU angetriebene und mit Windows 11 betriebene Gerät liefert zuverlässige Leistung und unterstützt eine breite Palette von Softwarefunktionen. Mit seiner POE-Funktion (Power over Ethernet) ist das TB-4845-POE die ideale Wahl für Anwendungen wie z.B. die Erfassung von Bildern in einer Fertigungsstraße oder den Einsatz von Kameras in industriellen Umgebungen. Darüber hinaus bieten seine zahlreichen E/As nahtlose Konnektivität mit Peripheriegeräten und sorgen so für mehr Flexibilität und Kompatibilität. Der TB-4845-POE kombiniert Leistung, Effizienz und Konnektivität und ist damit eine außergewöhnliche Lösung für industrielle Computeranforderungen.
