TA-5940-22

22” Light Industrial Computer

Available – Contact Us for Quick Quote

Beschreibung

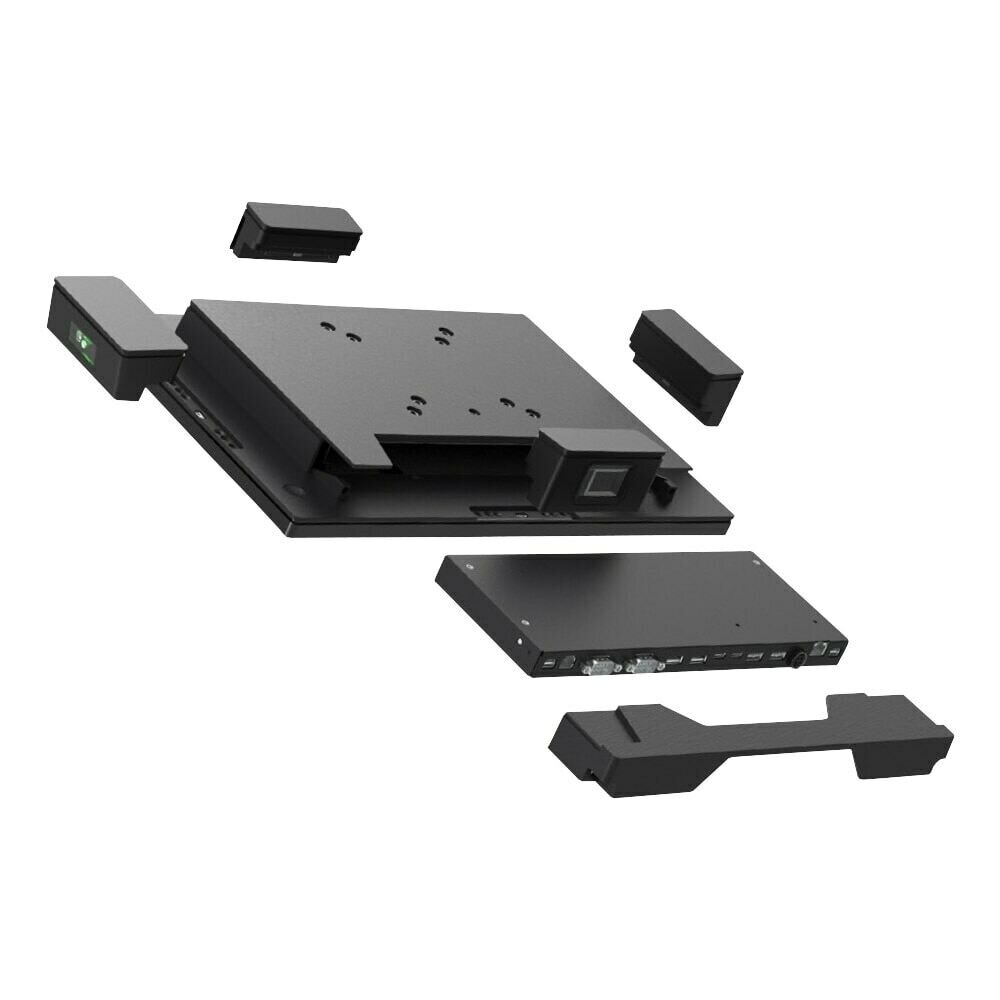

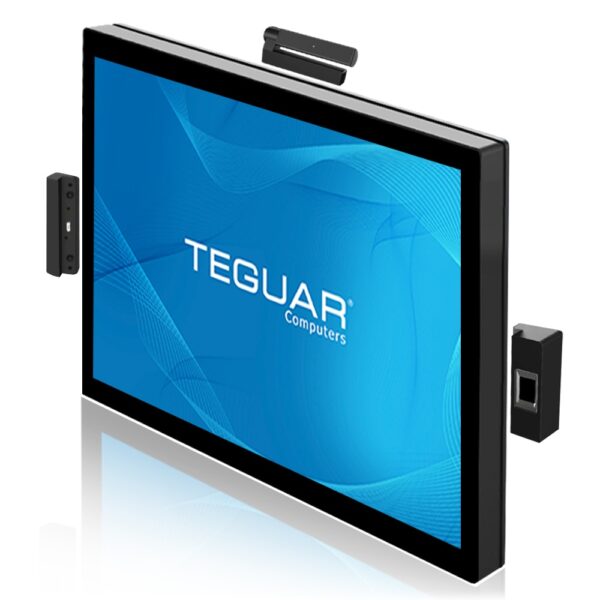

The TA-5940-22 Fanless Computer is ideal for kiosk applications or light-industrial applications. It has a 21.5” full HD touchscreen and it is modular, for easy customization. It has a removable box PC and can accommodate optional peripherals on all four sides of the housing, including a 3-Track MSR Fingerprint Reader, RFID Reader, Supported Verifone® VX820, 2D Barcode Scanner, and 5MP Camera. The desktop stand option even has a printer bay to securely hold an EPSON thermal printer. This kiosk ready computer runs on an Intel 11th Gen Tigerlake CPU, i3, or i5 CPU and can run Windows or Linux Operating Systems.

Key Highlights

21.5” LED Panel Touchscreen
Intel 11th Gen Tigerlake CPU
Customizable, Modular, Expandable

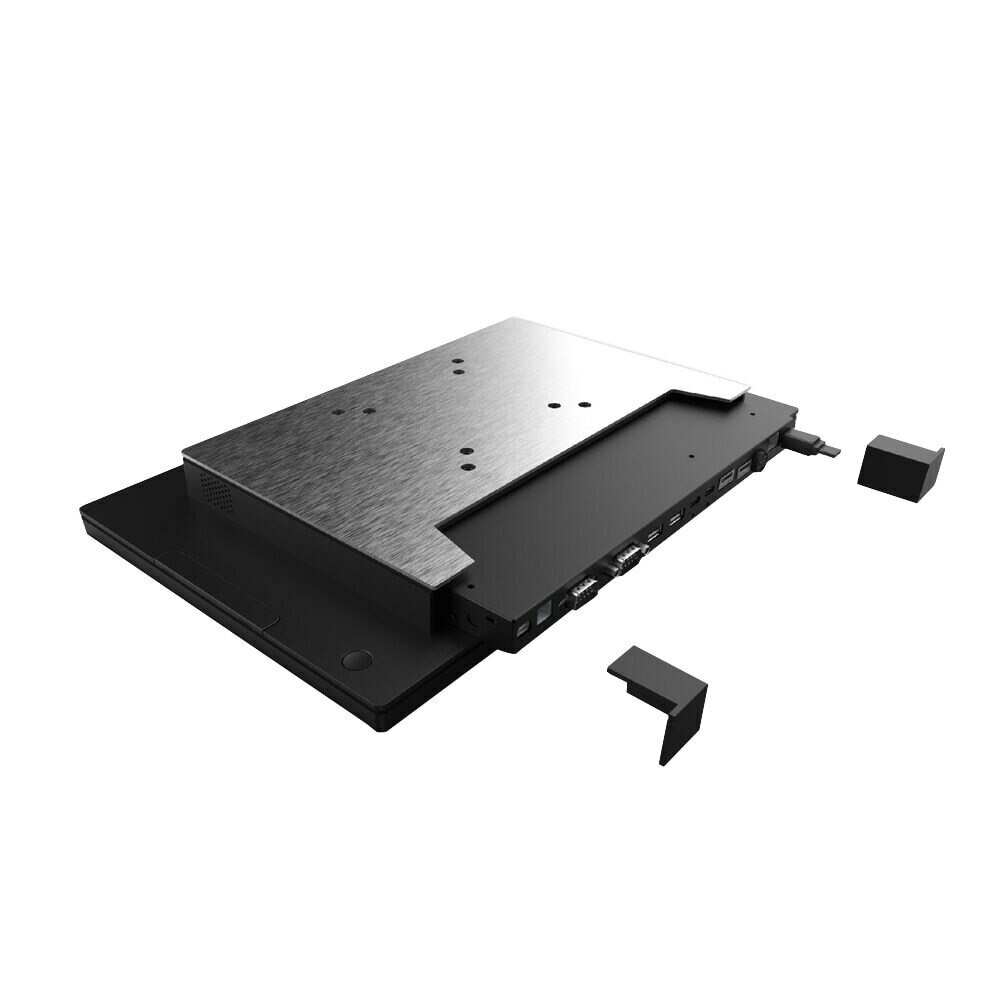

Removable Box PC, Printer Bay
Various Mounting Stands

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 11th Generation Tiger Lake
Processor Model	Core i3-1115G4E
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB
Storage Type	1x M.2 slot for SSD
Storage Support	M.2: 128GB-1TB

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	300 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 2.0 type C (data only), 1x USB 3.0 Type-C (Power/Video/Data), 2x USB 2.0, 2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	x2 RS-232 DB-9
Ethernet / LAN	1x RJ45 GbE LAN
Other Ports	Custom connector for External Monitor; 1x RJ11 cash drawer
Power Input Port	4-Pole DIN (latching)

Power

Input Voltage Range	19V DC
Standard Power Adapter	120W AC/DC Adapter

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11
Linux	Linux (Contact your sales rep for more information)

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2	1x M.2 2230 Key E (for WiFi expansion option)
Expansion Module support	4 USB based expansion areas on Bezel

Multimedia

Speakers	1x 3W Speaker
Camera	Optional Webcam

Thermal & Environmental

Operating Temperature	0°C - 35°C (32°F – 95°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	20% – 85% Non-condensing

Enclosure

Material	Plastic
IP Rating	IP54 Front Bezel
Color	Black
Led Indicator Light	Power
Control Buttons	Power Button
Mounting Options	VESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 a/b/g/n/ac
Bluetooth	Optional Bluetooth 5.1
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional RFID
Peripheral Other	3-Track MSR; Fingerprint Reader; Supported Verifone® VX820, P400, Ingenico iPP 325; POS Stand; Printer Stand; Floor Stand; Printer, Epson® TM-m30 / TM-T88IV, Star mc-Print3/ TSP-100/TSP-654

Weight / Dimensions

Weight	5.4

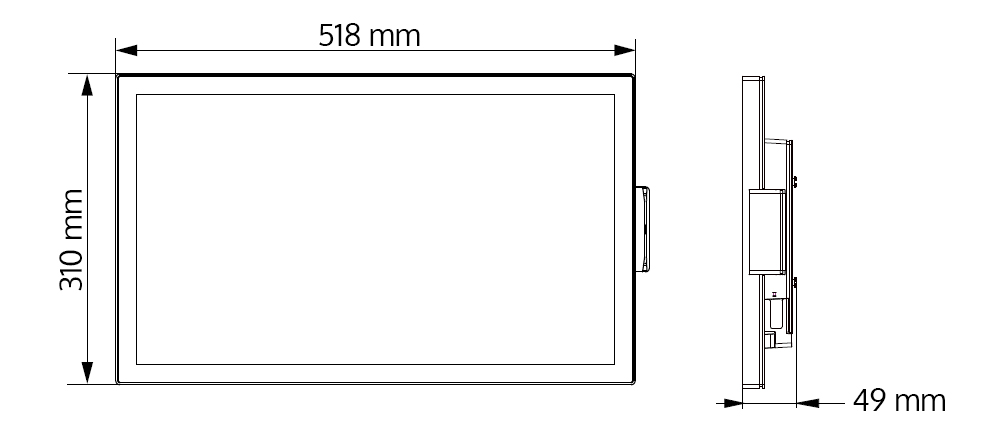

Dimensions	519 x 311 x 49

Certification

Certifications

CE, FCC Class A, LVD

Warranty

Up to 5 Years

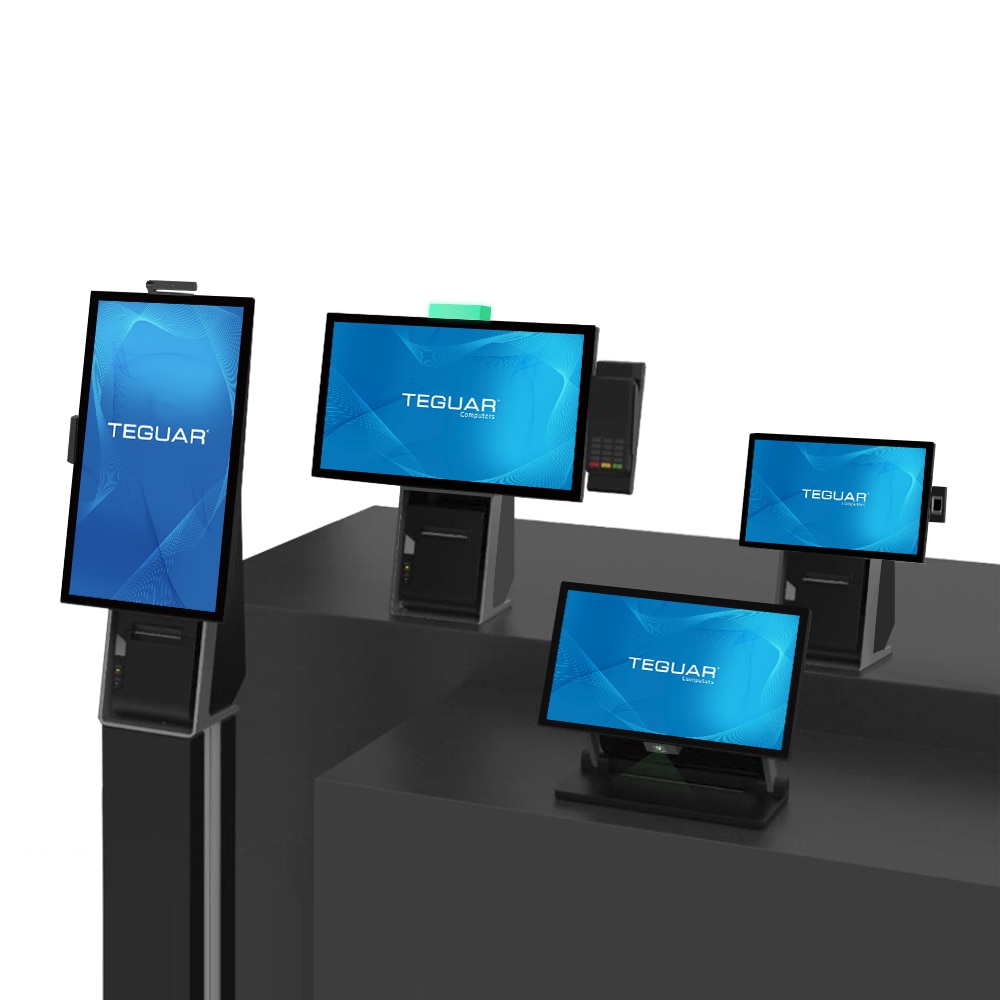

Hospitality Self-Service Check-in Kiosks:The TA-5940 All-in-One Computers with integrated RFID Readers and 5MP Cameras are ideal for hotels and airports, providing easy self-check-in and verification.

Retail POS Kiosks: The sleek Kiosk Computer Series, equipped with 2D Barcode Scanners and Verifone® VX820 payment terminals, streamlines transactions in retail stores.

Interactive Information Kiosks: With full HD displays and touchscreens, these all-in-one computers offer easy access to maps and event schedules in public spaces, museums, and educational institutions.

Secure Access Control Kiosks: The TA-5940 All-in-One Computers, featuring Fingerprint Readers and RFID Readers, enhance security in corporate offices, government buildings, and healthcare facilities.

See the data sheet Warranty Download Drivers

I/O Diagram Images

Tech Diagram Images

TA-5940-22

22" Leichter Industrie Computer

Available – Contact Us for Quick Quote

Beschreibung

Der lüfterlose Computer TA-5940-22 ist ideal für Kioskanwendungen oder leichtindustrielle Anwendungen. Er verfügt über einen 21,5″ Full-HD-Touchscreen und ist modular aufgebaut, so dass er leicht angepasst werden kann. Er verfügt über einen abnehmbaren Box-PC und kann an allen vier Seiten des Gehäuses optionale Peripheriegeräte aufnehmen, darunter einen 3-Spur-MSR-Fingerabdruckleser, einen RFID-Leser, einen unterstützten Verifone® VX820, einen 2D-Barcodescanner und eine 5MP-Kamera. Die Desktop-Ständeroption verfügt sogar über einen Druckerschacht zur sicheren Aufnahme eines EPSON-Thermodruckers. Dieser kioskfähige Computer läuft mit einer Intel 11th Gen Tigerlake CPU, i3 oder i5 CPU und kann mit Windows oder Linux betrieben werden.
