TA-5940-18

18” Commercial Touch Computer

Available – Contact Us for Quick Quote

Beschreibung

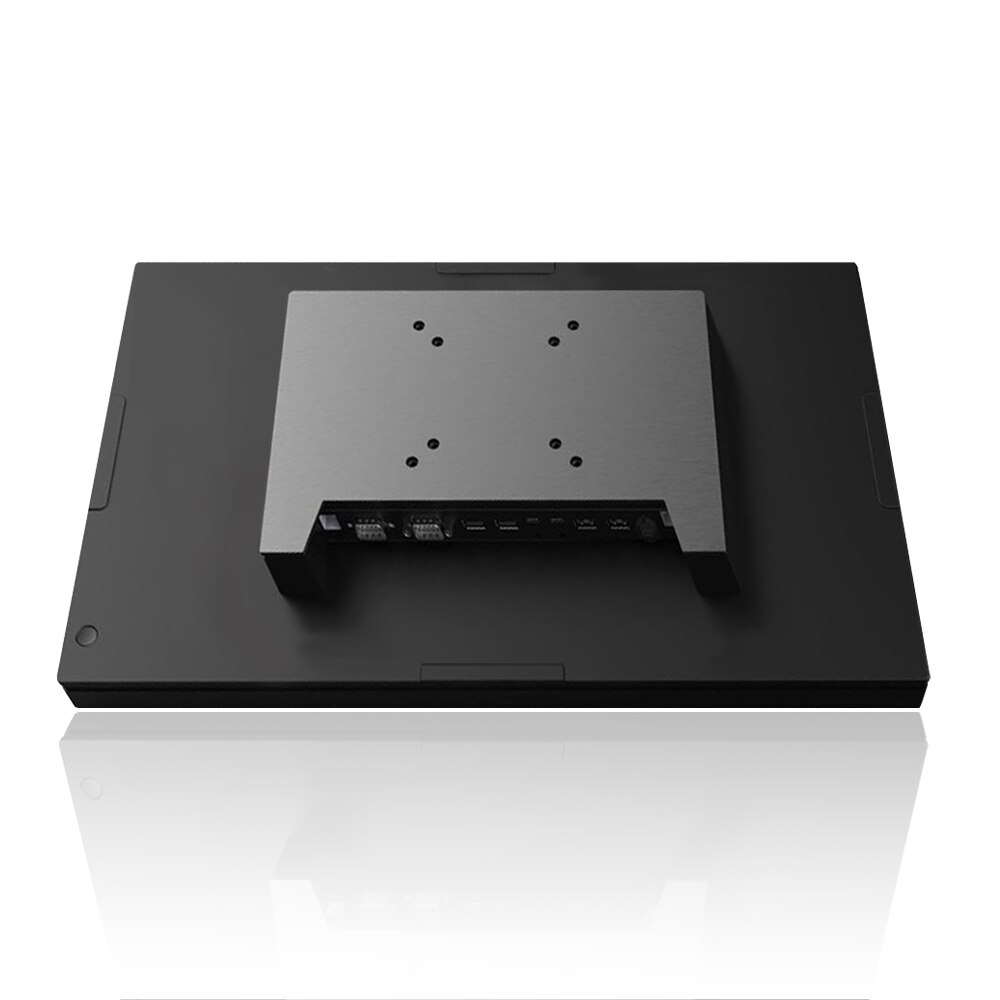

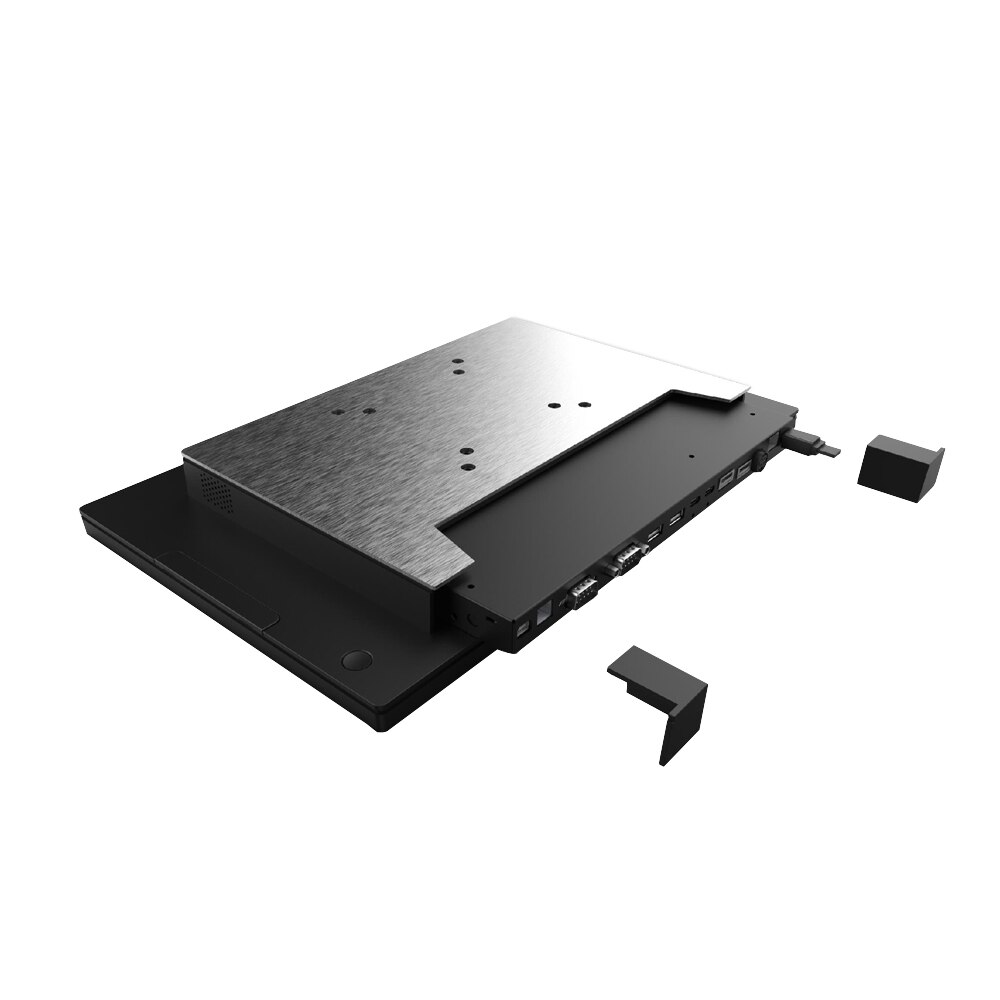

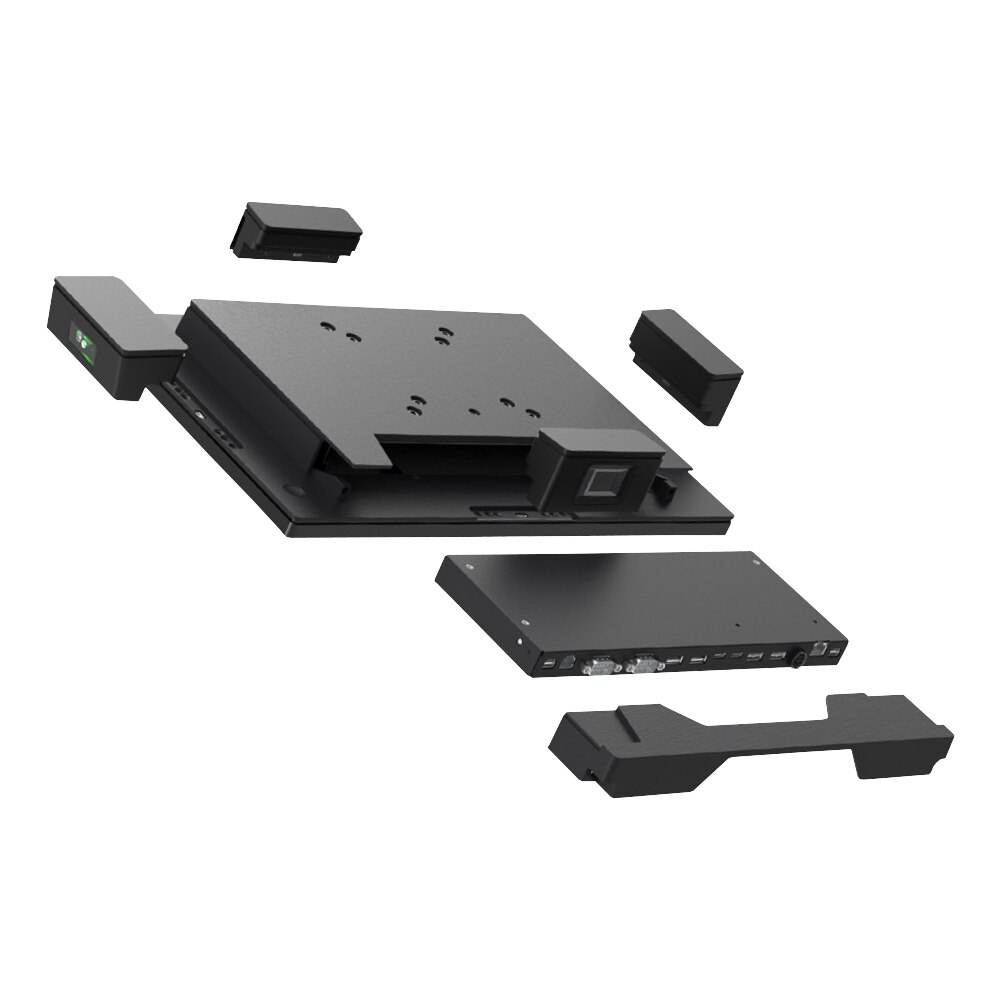

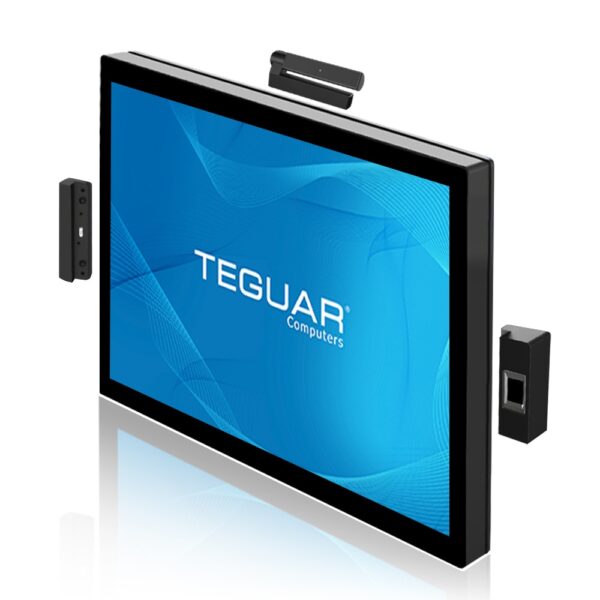

The TA-5940-18 is a modular and durable touch screen kiosk computer, with an 18.5” full HD touchscreen and a swappable box PC that fits onto the back of the unit. This computer is ideal for kiosk and POS systems, or it can be used for light-industrial applications. It can run Windows or Linux on its Intel 11th Gen Tigerlake CPU and optional peripherals can be added to all four sides of this computer, including a 3-Track Magnetic Stripe Reader, Fingerprint Reader, HF RFID Reader, Variety of EMV payment terminals, 2D Barcode Scanner, and Webcam. The TA-5940-18 can be mounted on a POS stand, printer stand, floor stand, and virtually any type of stand or arm via its VESA mounting hole pattern.

Key Highlights

18.5” PCap Touchscreen
Intel 11th Gen Tigerlake CPU
Modular Design with Removable Box PC
Customizable and Expandable
Slim, Future proof design

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 11th Generation Tiger Lake
Processor Model	Core i3-1115G4E
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB
Storage Type	1x M.2 slot for SSD
Storage Support	M.2: 128GB-1TB

Display

Screen Size	18.5"
Resolution	Optional 1920 x 1080, 1366 x 768
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 2.0 type C (data only), 1x USB 3.0 Type-C (Power/Video/Data), 2x USB 2.0, 2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	x2 RS-232 DB-9
Ethernet / LAN	1x RJ45 GbE LAN
Other Ports	1x RJ11; Custom connector for External Monitor
Power Input Port	4-Pole DIN (latching)

Power

Input Voltage Range	19V DC
Standard Power Adapter	120W AC/DC Adapter

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11
Linux	Linux (Contact your sales rep for more information)

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2	1x M.2 2230 Key E (for WiFi expansion option)
Expansion Module support	4 USB based expansion areas on Bezel

Multimedia

Speakers	1x 3W Speaker
Camera	Optional Webcam

Thermal & Environmental

Operating Temperature	0°C - 35°C (32°F – 95°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	20% – 85% Non-condensing

Enclosure

Material	Plastic
IP Rating	IP54 Front Bezel
Color	Black
Led Indicator Light	Power
Control Buttons	Power Button
Mounting Options	VESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 a/b/g/n/ac
Bluetooth	Optional Bluetooth 5.1
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional RFID
Peripheral Other	3-Track MSR; Fingerprint Reader; Contact Teguar is you have a customized external Module request

Weight / Dimensions

Weight	4.4
Dimensions	451 x 273 x 51

Certification

Certifications

CE, FCC Class A, LVD

Warranty

Up to 5 Years

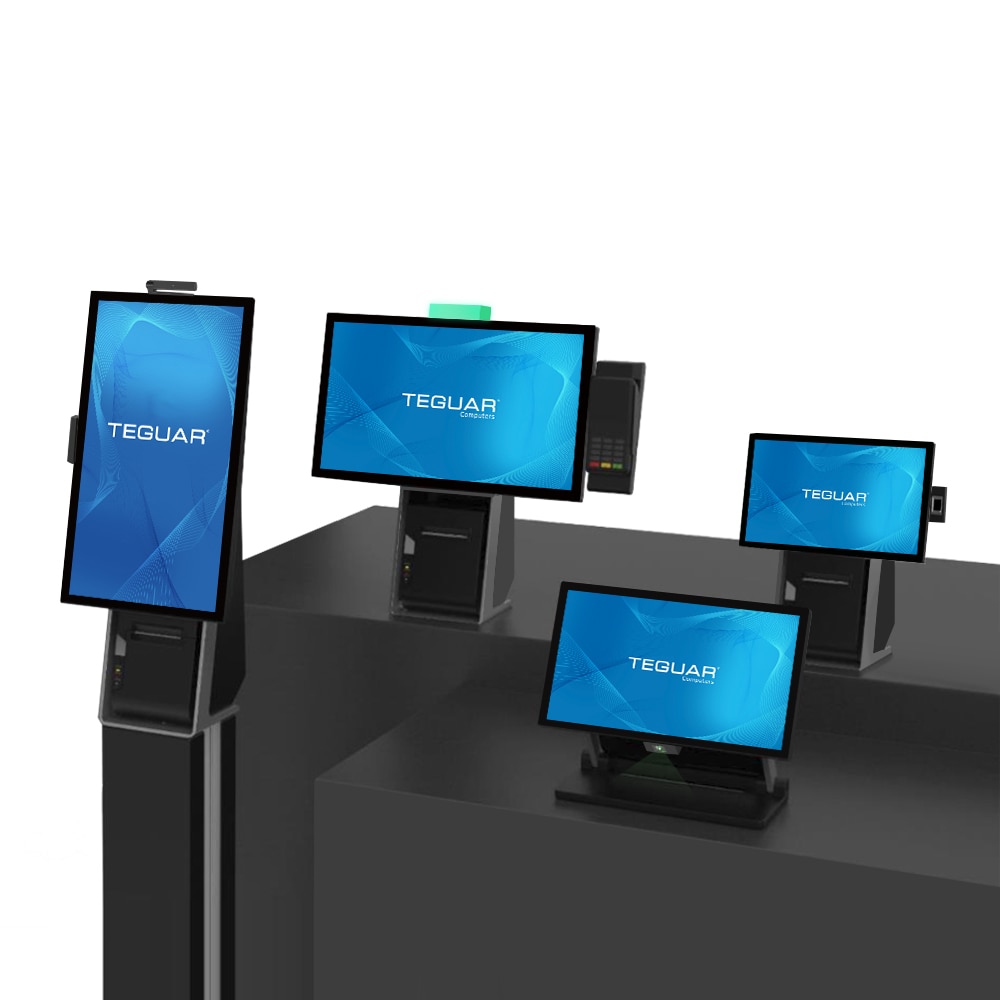

Hospitality Self-Service Check-in Kiosks:The TA-5940 All-in-One Computers with integrated RFID Readers and 5MP Cameras are ideal for hotels and airports, providing easy self-check-in and verification.

Retail POS Kiosks: The sleek Kiosk Computer Series, equipped with 2D Barcode Scanners and Verifone® VX820 payment terminals, streamlines transactions in retail stores.

Interactive Information Kiosks: With full HD displays and touchscreens, these all-in-one computers offer easy access to maps and event schedules in public spaces, museums, and educational institutions.

Secure Access Control Kiosks: The TA-5940 All-in-One Computers, featuring Fingerprint Readers and RFID Readers, enhance security in corporate offices, government buildings, and healthcare facilities.

See the data sheet Warranty Download Drivers

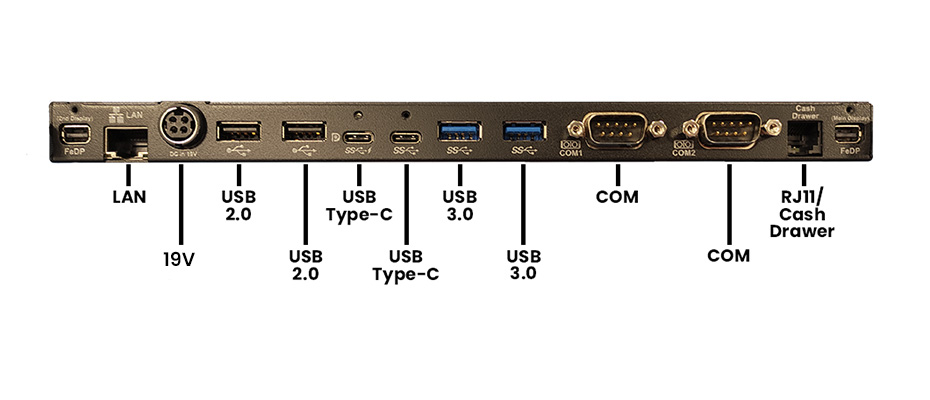

I/O Diagram Images

Tech Diagram Images

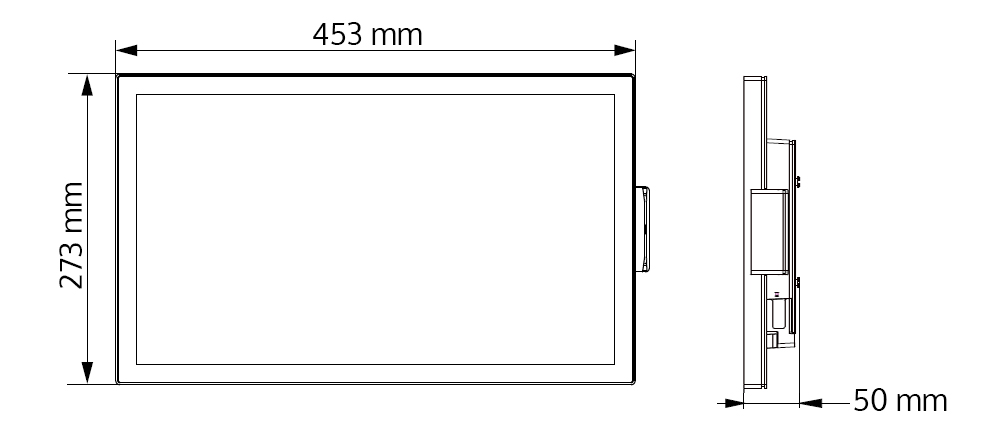

Teguar 18 inch computer technical drawing

TA-5940-18

18" Kommerzieller Touch Computer

Available – Contact Us for Quick Quote

Beschreibung

Der TA-5940-18 ist ein modularer und robuster Touchscreen-Kioskcomputer mit einem 18,5″ Full-HD-Touchscreen und einem austauschbaren Box-PC, der auf die Rückseite des Geräts passt. Dieser Computer ist ideal für Kiosk- und POS-Systeme oder für leichte industrielle Anwendungen geeignet. Auf seiner Intel 11th Gen Tigerlake CPU kann Windows oder Linux laufen und an allen vier Seiten dieses Computers können optionale Peripheriegeräte angebracht werden, darunter ein 3-Spur-Magnetstreifenleser, ein Fingerabdruckleser, ein HF-RFID-Leser, eine Vielzahl von EMV-Zahlungsterminals, ein 2D-Barcodescanner und eine Webcam. Der TA-5940-18 kann auf einem POS-Ständer, einem Druckerständer, einem Bodenständer und praktisch jeder Art von Ständer oder Arm über sein VESA-Montagelochmuster montiert werden.
