TA-4840-16

16" Fanless All in One PC

Available – Contact Us for Quick Quote

Beschreibung

The TA-4840-16 is a modular computer system powered by an Intel Celeron J6412 Quad-Core CPU and compatible with Windows 11. Ideal for customer-facing and light-industrial applications, it has a modular design with a 15.6” full HD touchscreen and a removable box PC for easy service or upgrades. With VESA mounting and the ability to add up to four optional peripherals on all four sides, including a 3-track MSR Fingerprint Reader, RFID Reader, 2D Barcode Scanner, 5MP Camera with microphone, and Verifone VX820 or Ingenico payment terminals, this computer is highly adaptable and can be mounted on various stands, arms, and carts.

Key Highlights

15.6” HD Display with PCAP Touchscreen
Intel Celeron J6412 Quad Core CPU
Modular Design with Removable Box PC
Slim and Durable Housing
Multiple Mounting Options

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB
Storage Type	1x M.2 slot for SSD
Storage Support	M.2: 128GB-1TB

Display

Screen Size	15.6"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	300 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	2x USB 2.0, 2x USB 3.0, 2x USB Type C (Data only)
Serial / Com	2x COM
Serial Protocol Detail	x2 RS-232 DB-9
Ethernet / LAN	1x RJ45 GbE LAN
Other Ports	Custom connector for External Monitor
Power Input Port	4-Pole DIN (latching)

Power

Input Voltage Range	19V DC
Standard Power Adapter	65W AC/DC Adapter

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11
Linux	Linux (Contact your sales rep for more information)

Compatibility

Security Hardware

fTPM 2.0

Expansion Slots

Internal M.2	1x M.2 2230 Key E (for WiFi expansion option)
Expansion Module support	4 USB based expansion areas on Bezel

Multimedia

Speakers	1x 3W Speaker
Camera	Optional Webcam

Thermal & Environmental

Operating Temperature	0°C - 35°C (32°F – 95°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	20% – 85% Non-condensing

Enclosure

Material	Plastic
IP Rating	IP54 Front Bezel
Color	Black
Mounting Options	VESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Optional through M.2 interface
Bluetooth	Optional Bluetooth 5.1
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional 13.56 NFC External Module
Peripheral Other	Contact Teguar is you have a customized external Module request

Weight / Dimensions

Weight	3.0

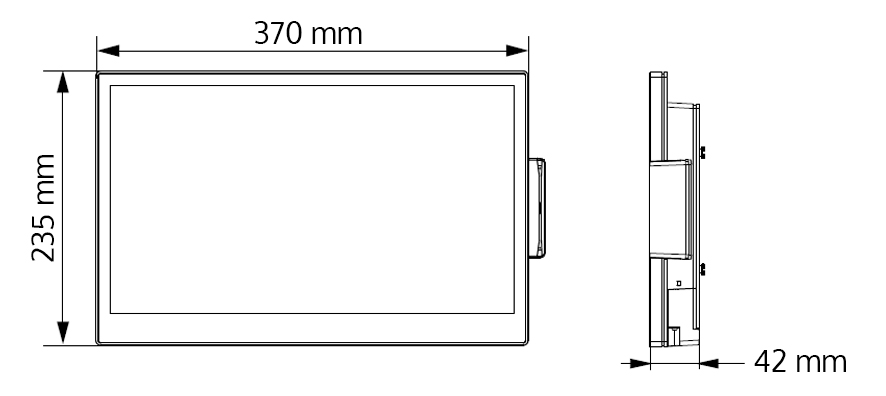

Dimensions	370 x 235 x 42

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Hospitality Self-Service Check-in Kiosks: Integrated RFID Readers and 5MP Cameras are ideal for hotels and airports, providing easy self-check-in and verification.

Retail POS Kiosks: The Fanless All in One PC Series, equipped with 2D Barcode Scanners and Verifone® VX820 payment terminals, streamlines transactions in retail stores.

Interactive Information Kiosks: With full HD displays and touchscreens, these all-in-one computers offer easy access to maps and event schedules in public spaces, museums, and educational institutions.

Secure Access Control Kiosks: Fingerprint Readers and RFID Readers enhance security in corporate offices, government buildings, and healthcare facilities.

See the data sheet Warranty Download Drivers

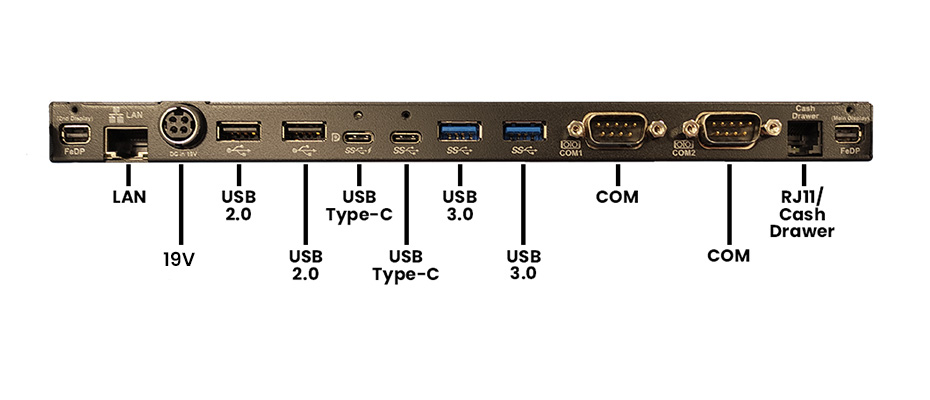

I/O Diagram Images

Tech Diagram Images

2D Barcode Scanner for TA-xx40 & Q5340 Series

2D Barcode Scanner for TA Series

5MP AF Webcam & Mic Module TA-XX40

Thermal Sensor, Webcam & Mic Module for TA Series

Fingerprint Reader for TA-5×40 & Q5340 Series

Fingerprint Reader for TA Series

TA-4840-16

16" Lüfterloser All-in-One PC

Available – Contact Us for Quick Quote

Beschreibung

Der TA-4840-16 ist ein modulares Computersystem, das von einer Intel Celeron J6412 Quad-Core CPU angetrieben wird und mit Windows 11 kompatibel ist. Das modulare Design mit einem 15,6-Zoll-Full-HD-Touchscreen und einem abnehmbaren Box-PC für einfache Wartung oder Upgrades ist ideal für Anwendungen im Kundenkontakt und in der Leichtindustrie. Durch die VESA-Montage und die Möglichkeit, bis zu vier optionale Peripheriegeräte an allen vier Seiten anzubringen, darunter ein 3-Spur-MSR-Fingerabdrucklesegerät, ein RFID-Lesegerät, ein 2D-Barcodescanner, eine 5MP-Kamera mit Mikrofon und Verifone VX820- oder Ingenico-Zahlungsterminals, ist dieser Computer äußerst anpassungsfähig und kann auf verschiedenen Ständern, Armen und Wagen montiert werden.
