All-In-One Fanless Panel PC

TP-1540-19 All-In-One PC

The Teguar TP-1540-19 is an advanced multimedia 18.5" wide-screen fanless Panel PC with Intel Pineview Platform ATOM D525 or a Core i5 CPU. It is designed with an ultra slim and elegant metal enclosure and a super fine white or black finish. Display sizes from 10–22” are available for the TP-1540 all-in-one panel pc. The high performance and high brightness LED display has a resistive true flat touch screen which is optionally available with a multi-touch function. The full dust and water proof front bezel meets many industrial application requirements. To fit into different applications TP-1540 -Series offers numerous accessories that allow users to dovetail their solution. The Teguar TP-1540 Touch Panel Computer is the best choice for healthcare, retail interactive kiosks, digital signage and many other applications.

Get Quote

Features
Tech Specs
Detail View
Product Images
Related Products
Get Data Sheet

Model Name	TP-1540-19
Mainboard	C48
Processor	Intel Pineview Dual Core D525 1.8GHz
Chipset	Intel Pineview CPU processor + ICH8M
System Memory	2 x DDR3 SO-DIMM slot, up to 4GB
Graphic Memory	Intel GMA 3650
LCD Touch Panel
LCD Size	18.5" LED LCD
Brightness	250 cd/m²
Resolution	1366x768
Touch Screen	True flat Resistive or P-Cap Multi-Touch (optional)
Storage Device
Hard Drive	2.5" Slim HDD bay, SATA HDD
Expansion
Mini PCI-E Slot	1 x support 802.11 b/g/n WLAN card
External I/O Ports
USB Port	4 x USB 2.0 Type A
Serial Port	4 (RJ45 type, COM1/COM2 standard COM, COM3/COM4 with +5V/+12V power selection)
Parallel Port	1 x D-sub 25F
LAN Port	1 x RJ-45 (10/100/1000Mbps Giga LAN)
DC Jack	1 x Latch Type
Audio Jack	1 x Mic-in, 1 x Line-out
Second Display	1 x DB 15F
Thermal solution	Fanless
Audio
Internal Speaker	2 x 2W speaker
Power
Power Adapter	Adapter (DC 90W, 19V, 4.7A)
Peripheral (option)
Web cam (Build in)	2M web cam
MSR	MSR

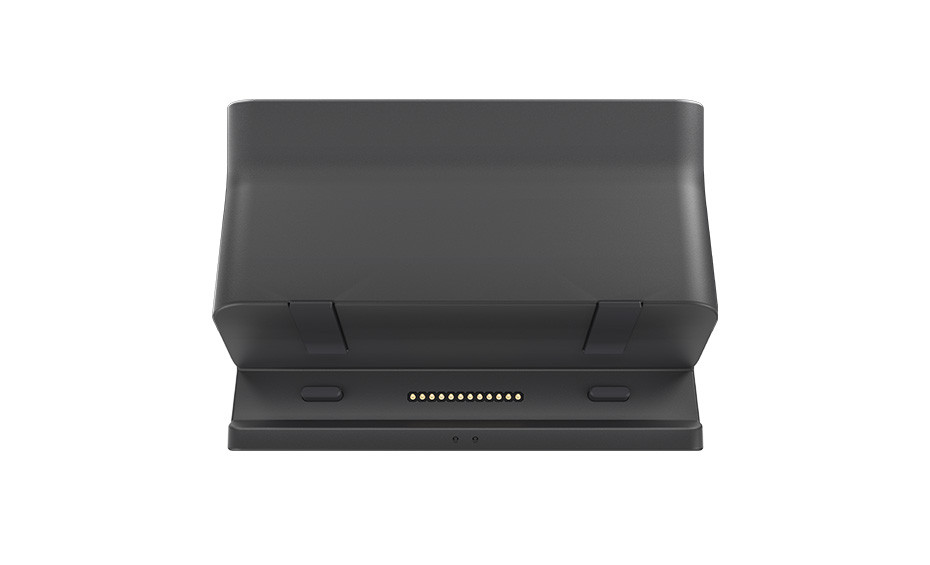

Docking	With membrane / Smart card / RFID / 2D scanner / Line-out, Mic-in
Handset and cradle	Handset and cradle module
Certificate
EMC & Safety	FCC Class A / CE Mark / LVD
Environment
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Dust & Water Proof	IP 65 (front panel)
Dimension (W x D x H)	464 x 48 x 284 mm (18.3" x 1.9" x 11.2")
Weight	6.8kg (15lbs)
Mounting	75mm x 75mm Standard VESA / Panel Mount
OS Support	Windows XP Pro, Linux, POS Ready 2009, Windows Vista, Windows 7, Windows XP Embedded
